Gas Permeability Tester
Model :
EKT-2128BR

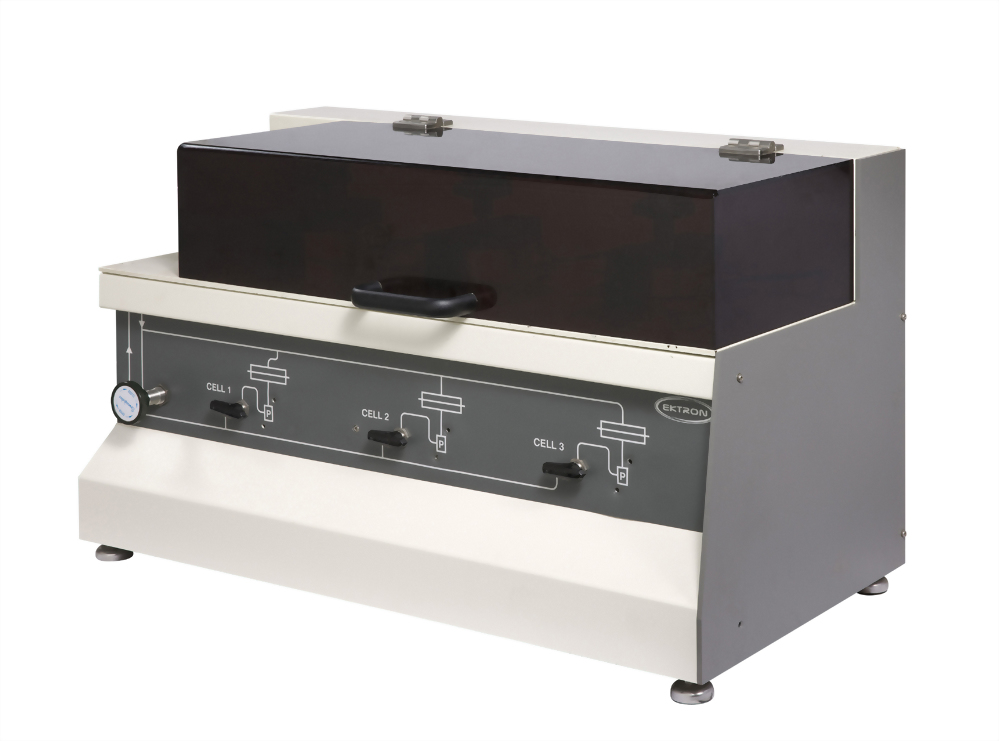

The EKT-2128BR Gas Permeability Tester is designed to ISO 2782-1 standards to measure the gas transmission rate of rubber films. It features 3 independent test sample holders, an ultra-stable Hot Water Circulation temperature control system, a high-performance vacuum pump, and advanced Windows software for automated pressure-time curve calculation.
High-Stability Hardware & Intelligent Software
Hot Water Circulation & Multi-Station
Because gas transmission is highly sensitive to thermal fluctuations, the EKT-2128BR abandons standard air heating in favor of a superior Hot Water Circulation system, ensuring an exceptional temperature accuracy of ±0.3°C. Coupled with a powerful vacuum pump and 3 independent sample holders, it maximizes both precision and laboratory throughput.
Advanced Windows Operation System
The user-friendly interface handles tests that can run up to 999 hours seamlessly, offering multi-language support (English, Traditional & Simplified Chinese).
- Auto-Calculation: Automatically calculates results and draws the pressure vs. corresponding time curve.
- Data Management: Save, reload, and compare historical curves instantly.
- Custom Reporting: Simple edit program allows users to design reports with specific data, logos, and formats.
Technical Specifications (EKT-2128BR)
| Standards | ISO 2782-1 |
|---|---|
| Test Sample Capacity | 3 pieces (Independent testing stations) |
| Sample Dimensions | Diameter: 90 mm (Testing Dia: 70 mm / Area: 38.46 cm²) |
| Temperature Control | Hot Water Circulation (Room temperature +10 ~ 70°C) |
| Temperature Accuracy | ±0.3°C |
| Measure Pressure Range | 0 ~ 100 kpa (Accuracy: 0.25% FS) |
| Vacuum Method | High-performance Vacuum Pump |
| Testing Time Range | 0 - 999 hours |
| Electricity | Single phase 220VAC ±10%, 50/60±3Hz |
| Machinery Dimensions | 810 (W) x 420 (H) x 470 (D) mm |
| Hot Water Tank + Pump | 500 (W) x 550 (D) x 450 (H) mm |
