Low Temperature Retraction & Brittle Point Tester
Fully Automated Sub-Zero Testing
High-Efficiency Auto Control

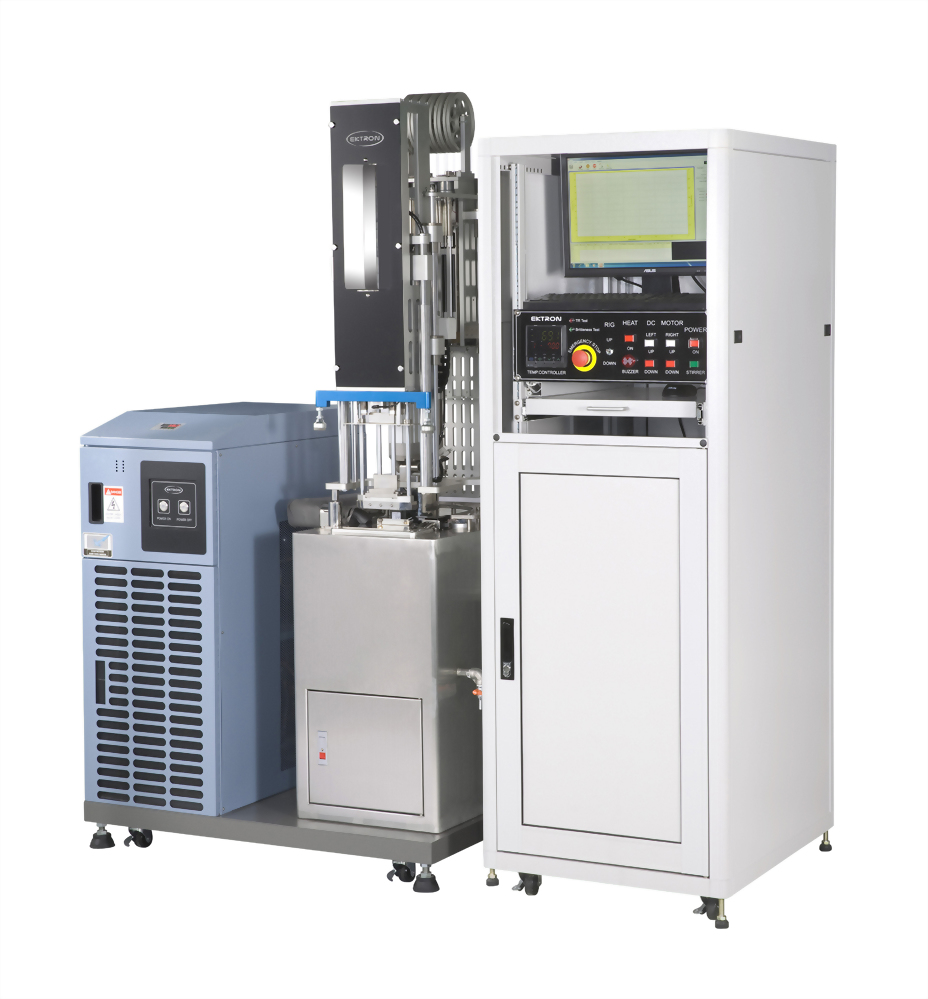

The EKT-100TRB dramatically reduces operator error through its fully automatic and computerized controlling system. It simultaneously holds up to 6 test samples. The critical processes—including specimen elongation and immersion into the -70°C cooling bath—are carried out completely automatically, ensuring precise 1°C/min temperature rising rates.
Real-Time Data & Dual Functionality
Critical data points (time, temperature, and retraction rate) are simultaneously displayed and tracked on the screen during the entire test cycle.
- Automatically calculates TR10, TR30, TR50, and TR70 values.
- Cooling supported by Compressor or Liquid Nitrogen.
- Optional Module: Seamlessly upgradeable to perform Brittle Point testing (ASTM D2137) in the same machine.
Technical Specifications (EKT-100TRB)
The system is designed with rigorous precision parameters for both primary retraction testing and optional impact fracture analysis.
| Standard TR Test Specifications | |
|---|---|
| Standard | ASTM D1329, ISO 2921 |
| Test Sample Holder | 6 pieces |
| Temperature Range | -70°C ~ 0°C |
| Cooling Method | Compressor or liquid nitrogen |
| Rising Temperature Rate | Automatically controlled by computer at 1°C / min. |
| Specimen Maximum Elongation | 200 mm |
| Even Temperature Method | Stirring liquid methanol (or ethanol) in SUS#304 stainless steel bath |
| Export Curve / Data | Retraction rate & temp curves. Data: TR10, 30, 50, 70, TR70 and difference between TR10 & TR70 |
| Brittle Point Test Specifications (Optional Function) | |
|---|---|
| Standard | ASTM D2137 |
| Temperature Range | -70°C ~ 0°C (Min displayed value: 0.1°C) |
| Hitting Speed & Head Radius | Speed: 2.2 +/- 0.2 m/s (6.6 +/- 0.6 ft/s) | Radius: 1.6 +/- 0.1 mm |
| Specimen Dimension & Q'ty | 32 x 6 x 2 mm | 5 pieces |
| Distance from Hitting Point | The center of the hitting head reaches the sample at 8.0 +/- 0.3 mm from the edge of the grip. |
Frequently Asked Questions: EKT-100TRB
|
For TR test |
|
|
1. Standard |
ASTM D1329, ISO 2921 |
|
2. Test sample holder: |
6 pieces 6片 |
|
3. Temperature range: |
–70℃ ~ 0℃ |
|
4. Cooling method: |
Compressor or liquid nitrogen |
|
5. Minimum displayed value for temperature: |
0.1℃ |
|
6. Rising temperature rate : |
Automatically controlled by computer 1℃/min. |
|
7. Specimen maximum elongation: |
200 mm |
|
8. Even temperature distribution method均溫方式: |
Stirring liquid methanol (or ethanol) |
|
9. Bath material溫度槽材質: |
SUS#304 stainless steel |
|
10. Export curve/data輸出曲線/數據: |
Retraction rate and temperature curves Data: temperature value for TR10, 30, 50, 70, TR70 and difference between TR10 and TR70 |
|
11. Electricity requirements: |
Single phase 220VAC±10%, 50/60±3Hz, 10 amp. |
|
12. Machinery dimensions:
|
100(W) x 75(D) x 200(H) cm –Main machinery with liquid nitrogen cooling system 100(W) x 75(D) x 200(H) cm –Main machinery with compressor cooling system 60(W) x 75(D) x 180(H) cm Subsidiary machinery |
|
For Brittle Point test |
|
|
1. Standard : |
ASTM D2137 |
|
2. Temperature range : |
–70℃ ~ 0℃ |
|
3. Minimum displayed value for temperature: |
0.1℃ |
|
4. Hitting speed: |
2.2+/–0.2 m/s (6.6+/–0.6ft/s) |
|
5. Hitting head radius: |
1.6 +/-0.1 mm |
|
6. Specimen dimension: |
32 × 6 × 2 mm |
|
7. Specimen quantity: |
5 pieces 5片 |
|
8.Distance from the hitting point: |
The center of the hitting head reaches the sample at 8.0+/–0.3 mm from the edge of the grip |
