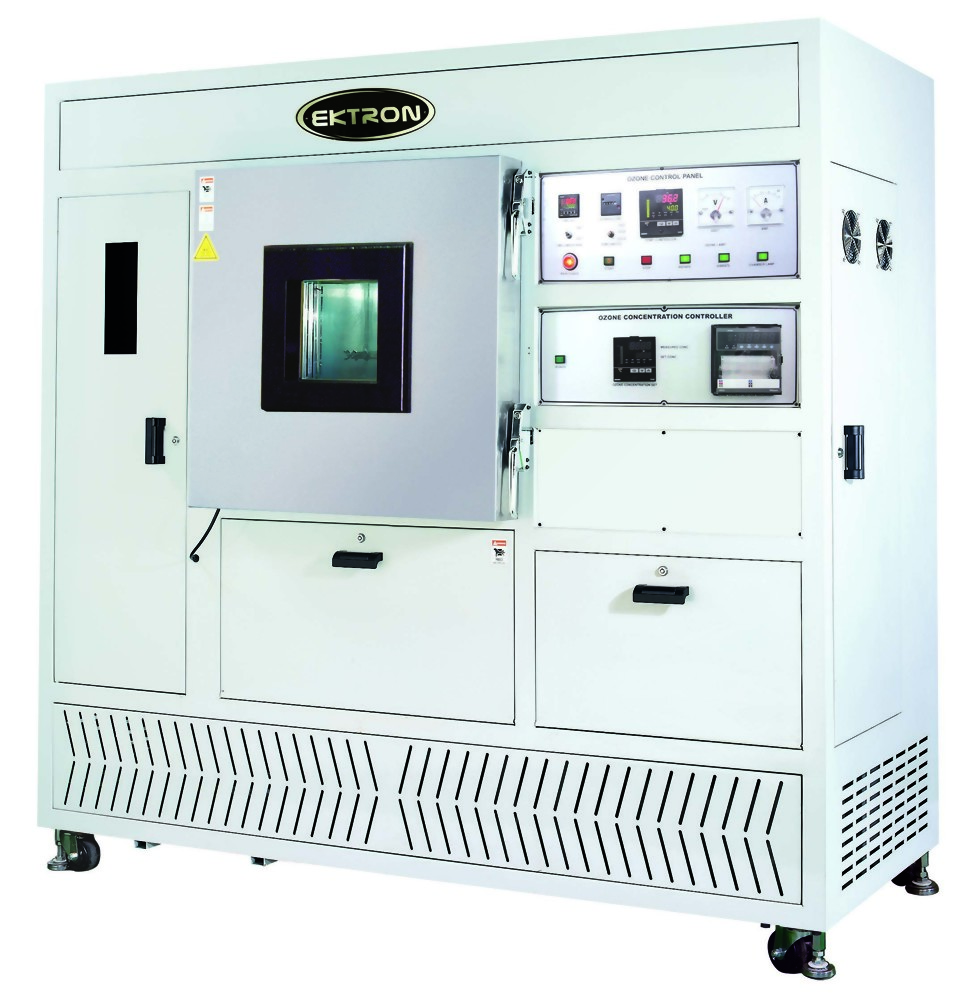

EKT-2001OZ Series Automatic Ozone Test Chamber(More than 16 types are available

Model : EKT-2001OZ Series

The EKT-2001OZ Series provides precise ozone environments (20~250pphm) using eco-friendly UV generation. Compliant with ASTM D1149, it features rapid concentration resumption and offers over 16 modular configurations, including massive chambers capable of testing whole tires.

Q'ty :

Description
Specifications

Advanced System Control & Efficiency

Precise Detection & Eco-Friendly Operation

Equipped with a highly precise detecting system, the EKT-2001OZ series accurately controls ozone concentrations across a wide range (normal 20~250 pphm). Utilizing physical UV rays for generation, the fully automatic system operates without chemical additives, delivering unmatched economy and efficiency.

Rapid Resumption & Custom Solutions

The chamber guarantees rapid resumption of O3 concentration during continuous circulation, alongside steadfast temperature stability.

Selective static and dynamic strain testing modes.
Customer-specific solutions: Ideal for hoses, belts, and large components.
Massive 150cm Chamber: Features a rotating plate designed to hold up to 4 passenger tires simultaneously.

Model Type Checking Chart (16+ Configurations)

Configure your exact laboratory solution by selecting the required concentration, humidity, data record type, temperature, and chamber size.

OZ Concentration	Humidity Range	Data Record Type	Temperature Range	Chamber Size (WxDxH)	Model No.
25 ~ 250 pphm (H)	- (X)	Paper Recorder (P)	Ambient +10~60°C (S)	50x50x50 cm / 80x80x50 cm / 150x150x150 cm	EKT-2001OZ-HPS Series
			-20~60°C (L)	50x50x50 cm / 80x80x50 cm / 150x150x150 cm	EKT-2001OZ-HPL Series

		Computerized System (C)	Ambient +10~60°C (S)	50x50x50 cm / 80x80x50 cm / 150x150x150 cm	EKT-2001OZ-HCS Series
			-20~60°C (L)	50x50x50 cm / 80x80x50 cm / 150x150x150 cm	EKT-2001OZ-HCL Series

	40 ~ 80% (T)	Paper Recorder (P)	Ambient +10~60°C (S)	50x50x50 cm / 80x80x50 cm / 150x150x150 cm	EKT-2001OZ-HPS...T
			-20~60°C (L)	50x50x50 cm / 80x80x50 cm / 150x150x150 cm	EKT-2001OZ-HPL...T

		Computerized System (C)	Ambient +10~60°C (S)	50x50x50 cm / 80x80x50 cm / 150x150x150 cm	EKT-2001OZ-HCS...T
			-20~60°C (L)	50x50x50 cm / 80x80x50 cm / 150x150x150 cm	EKT-2001OZ-HCL...T

* Note for High Concentration (50 ~ 300 ppm): Substitute the first prefix "H" with "L" (e.g., EKT-2001OZ-LPSSX).

Frequently Asked Questions: EKT-2001OZ Series

What is meant by "Rapid Resumption of OZ Concentration"? ▼

During dynamic testing or when the chamber door is temporarily opened, ozone levels naturally drop. Our advanced system control instantly detects the change and rapidly generates new ozone to resume the exact target concentration (e.g., 50 pphm) without overshooting, ensuring uninterrupted test validity.

Can the 150x150x150cm model accommodate finished tires? ▼

Yes! The massive 150cm Large Type chamber is specifically designed for customer-specific solutions. It features a heavy-duty rotating plate capable of holding and testing up to four (4) full-sized passenger tires simultaneously, making it ideal for automotive quality assurance.

EKT-20010Z Series Model Type Checking Chart:

OZ Concentration Range	Humidity Range	Data Record Type	Temperature Range	Chamber Size WxDxHcm	Model
25 ~ 250 pphm	-	Paper Recorder	Sandard Type:	50x50x50	EKT-20010Z- HPSSX
			Ambient +10 〜60^oC	80x80x50	EKT-20010Z- HPSTX
			Ambient +10 〜60^oC	150x150x150	EKT-20010Z- HPSLX
			-20~60°C	50x50x50	EKT-20010Z-HPLSX
				80x80x50	EKT-20010Z- HPLTX
				150x150x150	EKT-20010Z- HPLLX
		Computerized System	Sandard Type:	50x50x50	EKT-20010Z-HCSSX
			Ambient+10~60^oC	80x80x50	EKT-20010Z-HCSTX
			Ambient+10~60^oC	150x150x150	EKT-20010Z- HCSLX
			-20~60°C	50x50x50	EKT-20010Z-HCLSX
				80x80x50	EKT-20010Z- HCLTX
				150x150x150	EKT-20010Z- HCLLX
	40 ~ 80%	Paper Recorder	Sandard Type:	50x50x50	EKT-20010Z-HPSST
			Ambient+10~60^oC	80x80x50	EKT-20010Z-HPSTT
			Ambient+10~60^oC	150x150x150	EKT-20010Z- HPSLT
			-20~60°C	50x50x50	EKT-20010Z-HPLST
				80x80x50	EKT-20010Z- HPLTT
				150x150x150	EKT-20010Z- HPLLT
		Computerized System	Sandard Type:	50x50x50	EKT-20010Z- HCSST
			Ambient+10~60^oC	80x80x50	EKT-20010Z-HCSTT
			Ambient+10~60^oC	150x150x150	EKT-20010Z- HCSLT
			-20~60°C	50x50x50	EKT-20010Z-HCLST
				80x80x50	EKT-20010Z- HCLTT
				150x150x150	EKT-20010Z- HCLLT
50 ~ 300 ppm	-	Paper Recorder	Sandard Type:	50x50x50	EKT-20010Z- LPSSX
			Ambient+10~60^oC	80x80x50	EKT-20010Z-LPSTX
			Ambient+10~60^oC	150x150x150	EKT-20010Z- LPSLX
			-20~60°C	50x50x50	EKT-20010Z-LPLSX
				80x80x50	EKT-20010Z- LPLTX
				150x150x150	EKT-20010Z- LPLLX
		Computerized System	Sandard Type:	50x50x50	EKT-20010Z- LCSSX
			Ambient+10~60^oC	80x80x50	EKT-20010Z-LCSTX
			Ambient+10~60^oC	150x150x150	EKT-20010Z- LCSLX
			-20~60°C	50x50x50	EKT-20010Z-LCLSX
				80x80x50	EKT-20010Z- LCLTX
				150x150x150	EKT-20010Z- LCLLX
	40 ~ 80%	Paper Recorder	Sandard Type:	50x50x50	EKT-20010Z- LPSST
			Ambient+10~60^oC	80x80x50	EKT-20010Z-LPSTT
			Ambient+10~60^oC	150x150x150	EKT-20010Z- LPSLT
			-20~60°C	50x50x50	EKT-20010Z-LPLST
				80x80x50	EKT-20010Z- LPLTT
				150x150x150	EKT-20010Z- LPLLT
		Computerized System	Sandard Type:	50x50x50	EKT-20010Z- LCSST
			Ambient+10~60^oC	80x80x50	EKT-20010Z-LCSTT
			Ambient+10~60^oC	150x150x150	EKT-20010Z- LCSLT
			-20~60°C	50x50x50	EKT-20010Z-LCLST
				80x80x50	EKT-20010Z-LCLTT
				150x150x150	EKT-20010Z- LCLLT
Notice: Ozone Chamber Size: Standard Type: 505050cm with static and dynamic sample holder test 150150150cm - with rotating plate can place the passenger tire up to 4 units.

Other Special Request?
Different industry has different testing request, therefore, EKTRON TEK offers many model types to fulfill customer's request. For detail, please contact EKTRON TEK representative for more information.
