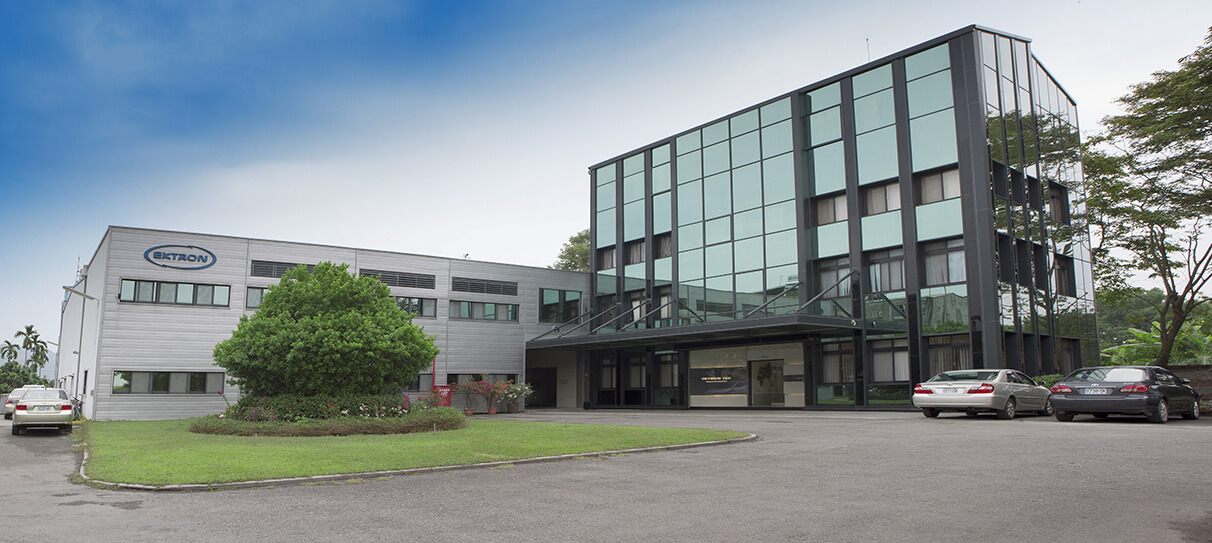

Ektron Tek Co., Ltd. is a rubber testing instrument and rheometer manufacturer. With more than 26 years of experience, technology and our professional research and maintenance team, we mainly provide rheometers products such as Dynamic Processing Rheometer, Moving Die Rheometer, Oscillating Disc Rheometer, Tensile Tester, Mooney Viscometer, Plunger Tester, Mixing Grader, ALFA Mirage Electronic Densimeter, Vibration Simulator, Flexometer, Automatic Ozone Test Chamber, Fatigue Failure Tester, Demattia Flexing Fatigue Tester, Low Temperature Retraction Tester, Gas Permeability Tester.
Company

Product List

Company

Introduction

  • The EKT-2002 MG Mixing Grader ( Carbon Black Dispersion) is designed and manufactured in accordance with ASTM D2663 & ISO1345 standards.
  • Use precise optical magnifying lens and high quality digital video camera, incorporating with high-resolution image processing interface, so that you can get the most accurate surface image of sample.
  • Exclusive accessory, the patent cutter is used to get the test specimen more easily.
  • Professional software with strong processing abilities will instantly calculate the total amount of particles, average diameter, maximun diameter, total area of particles etc. after getting imagine; and then show the particle size distribution in Histogtam chart.
  • Standard image could be saved and established to provide the user to compare and adjudge the mixing grade of test sample.
  • Software system provides the function of quality control, so the user can establish the control gates for the amount of varied particle size and maximum size of particle.
Mixing Grader  Mixing Grader EKT-2002MG

Moving Die Rheometer EKT-2001SA-AUTO

  • Auto sample feeding structure- Computer controlled Auto sample feeding structure enables the user to put 30 pieces (or more pieces depending on request) of samples. According to settings of compound information and sequence, the sample can be automatically send into the die cavity for testing and take it out automatically from die cavity after finishing test. It can reduce the work of user would be controlled efficiently, and the testing time interval.
  • EKT-2000S Moving Die Rheometer (Foam Pressure) is work of the founder of Ektron Tek who is also the first computerized Rheometer designer in Asia.
  • Designed and manufactured in accordance with ASTM D5289 & ISO 6502 standards.

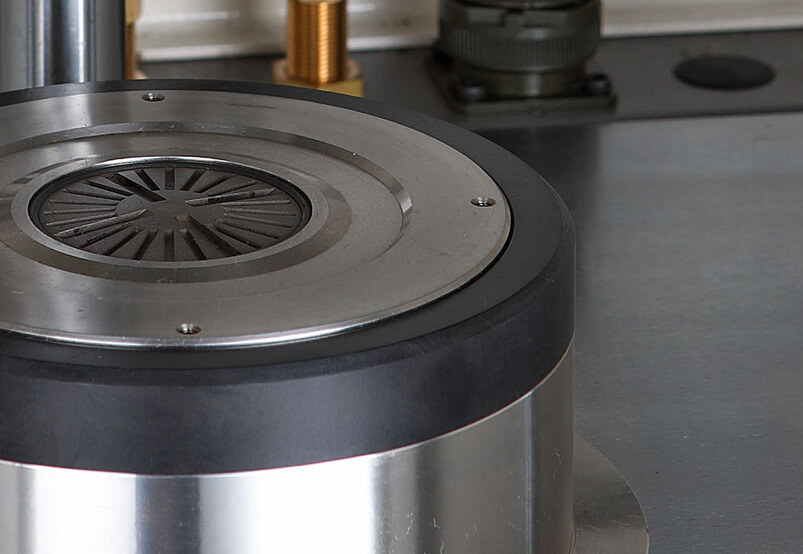

  • The torque sensor is directly attached to the upper die to avoid friction and mechanical resistance which influence sensors' precision. The measured torque value is the real viscosity elastic property of compounds.

The EKT-2000DPR Dynamic Processing Rheometer is a newest technology rubber-testing instrument, which measuring the Viscosity and Elastic of Polymer properties by dynamic mechanical testing system.


Dynamic Processing Rheometer is designed with rotorless (Moving Die) cavity structure and provides dynamic, strain, modulus measurements in different temperature condition.


Using this instrument is not only for better product quality control and also very suitable for laboratory institution of detail research & development of Rubber Compound.


Special Features and Functions

  • Quick Temperature Heat-Up and stabilization
  • Greater sensitivity and precision torque measuring system
  • Multiple Test Functions
  • Simplify Operation
  • SPC Statistics Software



Dynamic Processing Rheometer
 EKT-2003S

Introduction

EKT-2102DFT Demattia Flexing Fatigue Tester is designed in accordance with ASTM D430 and D813 to test the repeat bending strain and flexing on different kinds of vulcanized rubber compound.


After Test, the testing compound can be determined the difference such as deformation, elongation, hardness, etc. under different temperature environment in certain of time.


Functions and Features

  • Distance of specimen holder can be adjustable.
  • The flexing stroke can be adjustable from 0-100mm.
  • Test samples can be held up to 20 pieces.
  • Low Noise –EKT-2102DFT Demattia Flexing Fatique Tester with special structure design has low noise
  • Electronic low temperature controlling system provides high accuracy measurement.

Test Capabilities

  • Accelerated Aging Studies
  • R&D Laboratory Testing
  • Quality Control Testing
  • Quality Assurance Testing
 Demattia Flexing Fatigue Tester

Introduction

  • Designed in accordance with ASTM D1676 & ISO289 standards.

  • Main Functions:
    • Mooney Viscosity Test: A determination of the viscosity of raw rubber or compounded rubber.
    • Stress Relaxation Test: A determination of stress relaxation of a rubber.
    • Pre-Vulcanization Test: A determination of the features of compounded rubber during the early stage of vulcanization.


  • Power Law Decay Model


  • Provide varies quality control function to check the test results of mooney value and scorch time; more than 18 points of time relating to mooney value setting enable the user to control the quality of mooney value at any time of test curve.


  • SPC software can draw and analyze the test results of mooney values and scorch times such as X-MR, X-R, histogram and normal distribution.
Mooney Viscometer
 Plunger Tester PL-2001  Plunger Tester PL-2002  Plunger Tester PL-2003

Introduction

  • Designed and manufactured in accordance with ASTM F414, DOT571.109, F870 & JIS D4230 standards.
  • New generation of PL-2000X series Plunger Testers, equipped with servo-hydraulic system to control the testing speed, are available fpr customers to select the suitable model.
  • Test functions including Radial elasticity test, Tread footprints test, Tire dimension test, Bead unseating test, Lateral elasticity test and Pressure distribution analysi for Footprints. (Note: Test function are different from machine's models)
  • Wide range capacities of load cells are available for customers to select the suitable ones to test the different sizes of tires.
  • Different operations modules are designed in accordance with different test functions. They can simplify the procedures of operation settings and efficiently manage the massive data.
  • Software provides three types of mean calculations, including Arithmetic mean, Weighted mean, and Median mean.
  • During test, data and curves will be displayed on the monitor immediately; and then automatically saved into memory device such as hard dish while finished.

Introduction

  • EKT-2003SP Moving Die (Foam Pressure) Rheometer is the founder of Ektron Tek that is the designer of Asia's first computerized Rheometer.
  • Designed and manufactured in accordance with ASTM D5289 & ISO 6502 standards.
  • The torque sensor is directly attached to the upper die to avoid friction and mechanical resistance which influence sensors' precision. The measured torque value is the real viscosity elastic property of compounds.
  • This serials of Rotorless Rheometer adopt new designed die structure provides simple test piece loading and removing, and ensures the vulcanization properties of rubber compounds are presented perfectly due to the fact that test specimens in the die cavity are held firmly.
  • The torque-measuring device installed on the upper die eliminates extra resistance forces generated from the oscillating structures and can enhance its sensitivity.
  • During test, the computer can automatically measure some viscoelastic curves such as: Elastic torque curve, Viscous torque curve, Viscous-Elastic torque curve, Tancurve, Loss angle curve, Curing rate curve, Upper/lower die temperature curve. (Note: 2000SP model can get some more curves of foam pressure and pressure rate)

Gas Permeability Tester
Introduction

  • Windows Operation Software System
    Windows operation software system provides friendly operation environment also the following characteristics:
    1. User can pre-set and save the testing specifications to save time of setting procedures before test.
    2. User can choose and arrange the related coordinates such as retraction value corresponding to time and temperature.
    3. After tests, all test curves and related test data can be saved and retrieved for future use.
    4. All the saved curves could be reloaded for comparison.
    5. Test data can be easily saved, export, copied and deleted.
  • Auto-calculation
    During the test or the end of test, the computer can automatically calculate and save the test results.

Introduction

  • DDesigned and manufactured in accordance with ASTM D2084& ISO 6502 standards.

  • Output, displayed and memorized graphics including Elastic torque, Cure rate, and Upper/Lower dies temperatures.

  • More than 30 items of data, such as ML, MH, TS, TC, CRI etc., couble be taken from each test.

  • Cure curve provides the processing, vulcanizing, and vulcanized physical properties of rubber cross-linking reaction.

  • Multiple control gates are available for controlling the specified data such as ML, MH, TS, and TC. And extra 18 control points are also supplied for the user to set some control gates at any time point of a cure curve.

  • Standars accessory - SPC (Statistical Process Control) software is used to analyze and draw the statistical aontrol charts including X-RM, X-R, histogram, and normal distribution for some specified data.


Introduction

  • EKT-2003S Moving Die (Foam Pressure) Rheometer is the founder of Ektron Tek that is the designer of Asia's first computerized Rheometer.
  • Designed and manufactured in accordance with ASTM D5289 & ISO 6502 standards.
  • The torque sensor is directly attached to the upper die to avoid friction and mechanical resistance which influence sensors' precision. The measured torque value is the real viscosity elastic property of compounds.
  • This serials of Rotorless Rheometer adopt new designed die structure provides simple test piece loading and removing, and ensures the vulcanization properties of rubber compounds are presented perfectly due to the fact that test specimens in the die cavity are held firmly.
  • The torque-measuring device installed on the upper die eliminates extra resistance forces generated from the oscillating structures and can enhance its sensitivity.
  • During test, the computer can automatically measure some viscoelastic curves such as: Elastic torque curve, Viscous torque curve, Viscous-Elastic torque curve, Tancurve, Loss angle curve, Curing rate curve, Upper/lower die temperature curve. (Note: 2000SP model can get some more curves of foam pressure and pressure rate)

Moving Die Rheometer

Moving Die Rheometer Operation



Introduction

  • Designed and manufactured in accordance with ASTM D623 & ISO 4666 standards.

  • By means of applying constant load and compression frequency to the test specimen, our flexometer could help the user to understand the history of Heat Built-up and dynamic fatigue poeperties of rubber compounds. For example, while tests the tire compound, it could provide the information of rolling resistance.

  • Pt100 temperature sensor, temperature controller in PID parameters control, and air circulator are adopted to ensure the stable temperature control.

  • Real time detects the heat built-up and deformation of test specimen, and synchronous displaying the graphic on the monitor.

  • Automatically calculates deformation ratio of flexometer test specimen after test is finished; and then all the data and curves will be saved.

Flexometer EKT-2002GF

Introduction

EKT-TR100 TR-Low Temperature Retraction Tester is designed in accordance with ASTM D1329, ISO 2921 with fully automatic and computerized controlling system.
The system can automatically controls the temperature and measure the samples deflection by using the high precision measuring device.
The system can hold the test samples up to 6 pieces. The test result will be carried out automatically and showing with related time & temperature simultaneously.

  • Temperature Control System:
    EKT-TR100 is designed with stainless temperature bath and equipped with electric stirrer to ensure the temperature of the bath is uniform.
    • By using the PID microprocessor warm mixer and PT100Ω temperature sensor to control the temperature bath accurately.
    • By using the LN2 system to shorten the time of cooling the temperature bath.
  • Computerized Automatic Controlling System
    Window's operation software system provides friendly operation environment also including the following special functions:
    • User can pre-set and save large numbers of testing specifications to save time of setting procedure before test.
 Low Temperature Retraction Tester

Introduction

VS-2001 Vibration Simulation is an intelligent rubber testing instrument which measures the dynamic behavior of rubber compound and simulates the behavior in different temperature environment. It provides the function of traditional Goodrich Flexometer and also measures the elastic & viscous modules. VS-2001 Vibration Simulation is very suitable for predicting the heat-build-up of rubber and getting the information of dynamic behavior in the rubber industry.

VS-2001 Vibration Simulation is designed to obtain information about the properties of material and products with broadest range of testing capabilities and computerized testing systems. This testing instrument provides static & dynamic tests and data collection by professional software system. The VS series, a new generation of vibration simulations from Ektron Tek, will provide you a powerful and reliable analysis system.

For the vibration analysis research, the VS series have the most reliable and cost-effective testing solutions. The VS vibration simulation systems are designed to measure the damping coefficient the elastic coefficient (Kd Ks), the viscous coefficient and the loss coefficient (tan), modules analytic data offers greater insight into rubber compounds. The VS2001 is designed for the application of rubber compounding.

 Vibration Simulator VS2001
 Vibration Simulator Operation  Vibration Simulator Operation
 Automatic Ozone Test Chamber EKT-2001OZ Automatic Ozone Test Chamber EKT-2002OZ(H)(L)  Automatic Ozone Test Chamber EKT-2001OZT(H)(L)

Introduction

  • Designed and manufactured in accordance with ASTM D1149, ISO1431 & JIS K6259 standards.
  • Providing precise and accurate ozone (OZ) concentration environment for rubber and polymer test.
  • Widely applied to (1) Accelerated ageing research (2) Quality control and assurance tests and (3) R&D laboratory formula experiments for cracking resistance.
  • Wide ranges of ozone concentration (normal 20~250pphm, or according to customer's request) can satisfy user's different requirements.
  • The real ozone concentration is controlled and measured accurately by means of precise detecting system.
  • Provide both static and dynamic strain sample holders that conform to international standards.
  • Excellent system control: (1) Maintaining rapid resumption of OZ concentration during continuous circulation (2) With the ability of automatically and steadily keeping the chamber temperature.
  • Economy and efficiency: (1) Full automatic test after simple settings (2) Physical method produced ozone unnecessary any chemical additives.
 Tensile Tester TS-2000 01  Tensile Tester TS-2000 02  Tensile Tester TS-2000 03

    Introduction

  • Advantage server motor, high quality warm gear gearbox, and precise roll bearing screw are adopted to ensure the accurate control and results.
  • Varity test and measure functions:
    • Tension: A test to evaluate the tensile strength of vulcanized rubber, nylon cords, steel wires and O-ring etc.
    • Compression: A test to evaluate the compression stress and deflection of rubber and plastic materials.
    • Adhesion: A test to evaluate the static adhesive strength of rubber to rigid or rubber or flexible materials.
    • Tear: A test to evaluate the tear strength of rubber or fabric materials.

Introduction

EKT-2002FF Flexing Fatigue Tester is designed in accordance with ASTM D4482 to test the fatigue life under a tensile strain cycle on different kinds of vulcanized rubber compound to determine the fatigue life at various extension ratios.

  • Each Cycle consists of:
    • Increasing strain for one quarter of the cycle time.
    • Decreasing strain for one quarter of cycle time.
    • Zero imposed strain for one quarter of the cycle time.

Specification

  • Distance of specimen holder can be adjustable.
  • Cycle Speed: 1.7Hz
  • Test Temp: Ambient
  • Testing Extension Ratio: 1.6 ~ 2.4
  • Test Specimen: Dumbbell Shape
  • Sample Holders: 24 samples
  • Counter: 0 ~ 999999
  • Electricity: 3 phase, 380 ±10V, 50/60 Hz
 Fatigue Failure Tester
